| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | VD-3-49.15-K1-B00 PX63 5:1 or VG.VD4915BK1.P63.1.5 |
| Diameter, Shaft | 0.59" (15mm) |
| Dimensions | 2.48" (63mm) |
| Length, Shaft | 1.338" (34mm) |
| Power | 99 W |
| Series | |
| Shape | Round |
| Speed | 900 RPM |
| Temperature Operating Range | 32 to 104 F (0 to 40 C) |
| Termination | Cable with Open Wire |
| Torque | 149.683 oz-in (1057 mNm) |

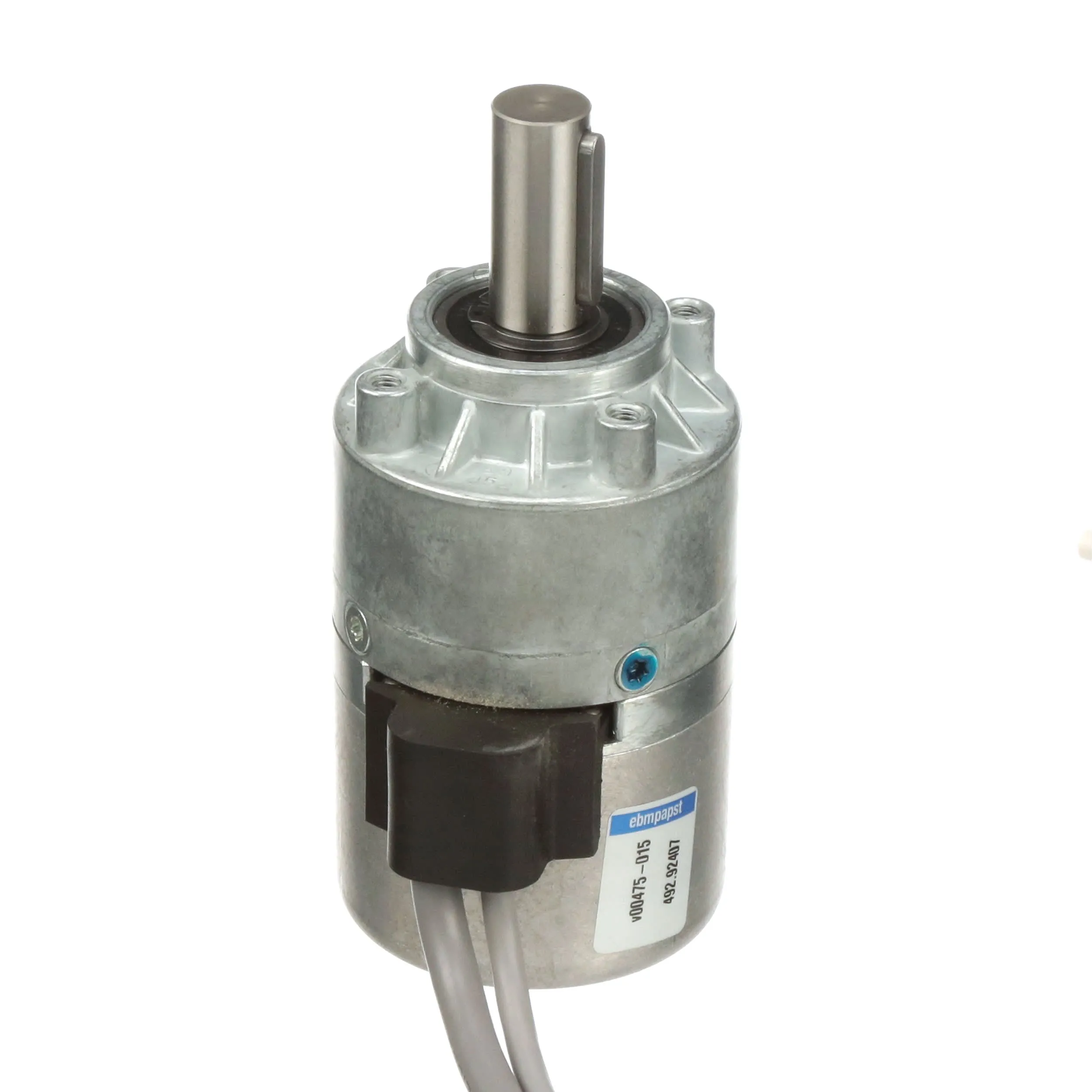

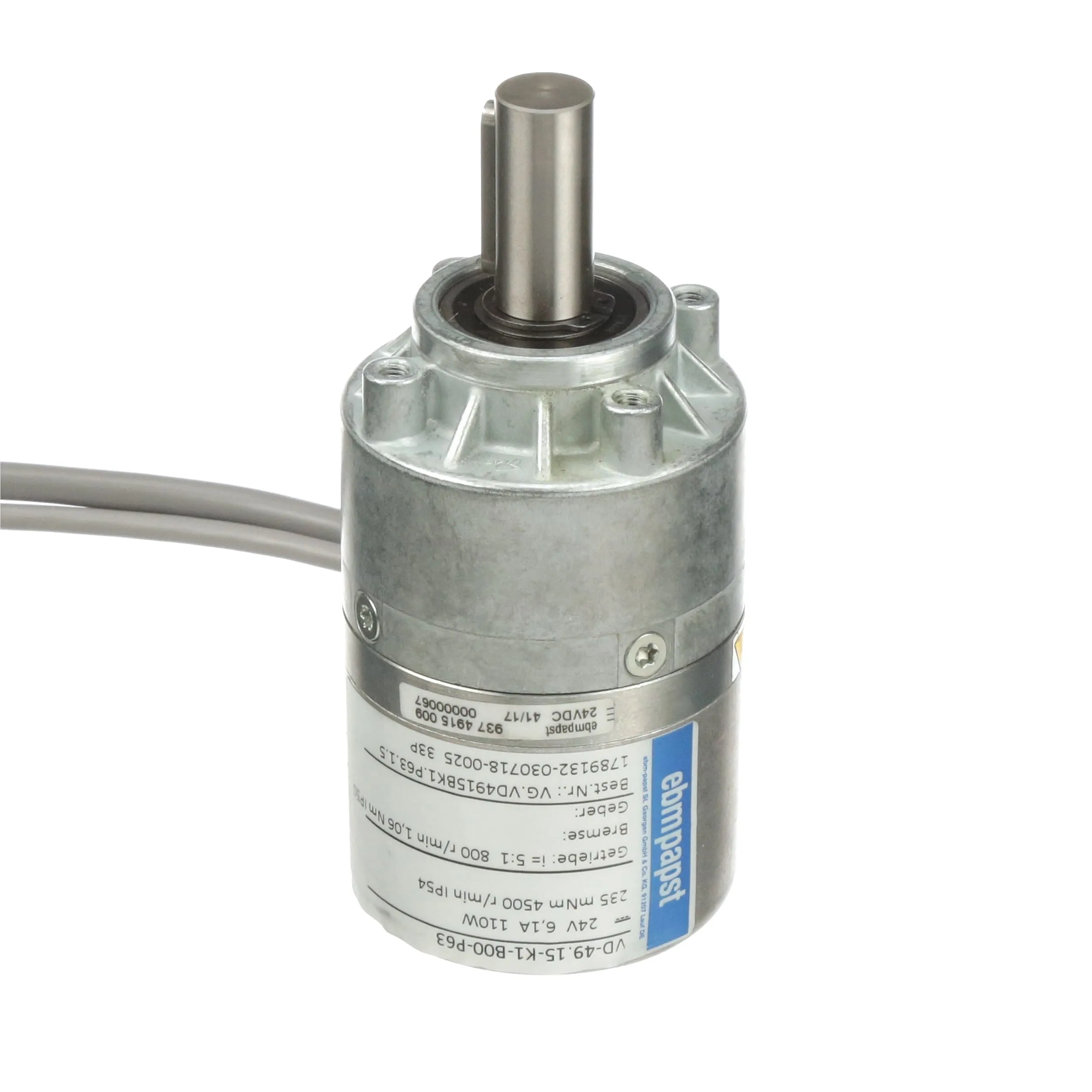

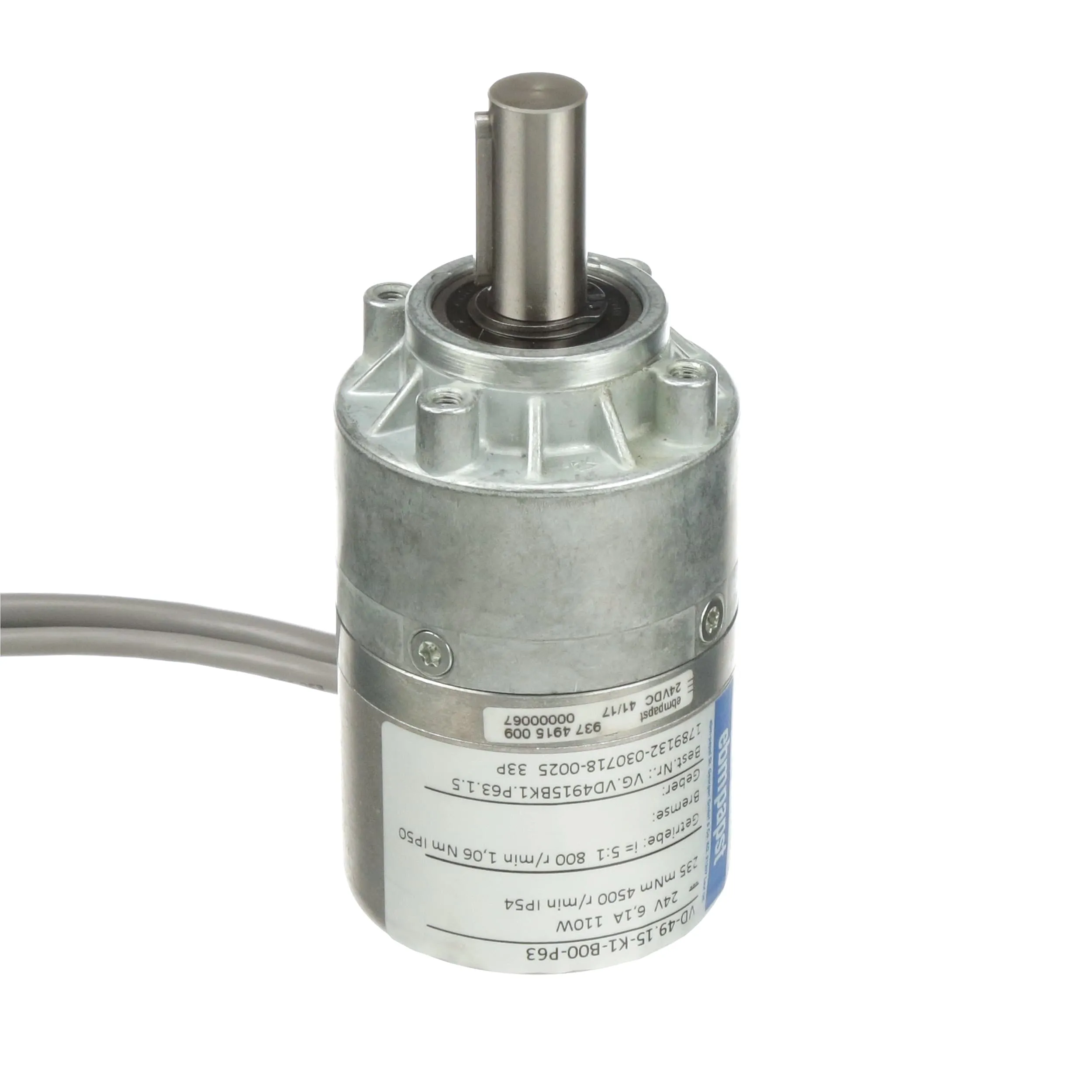

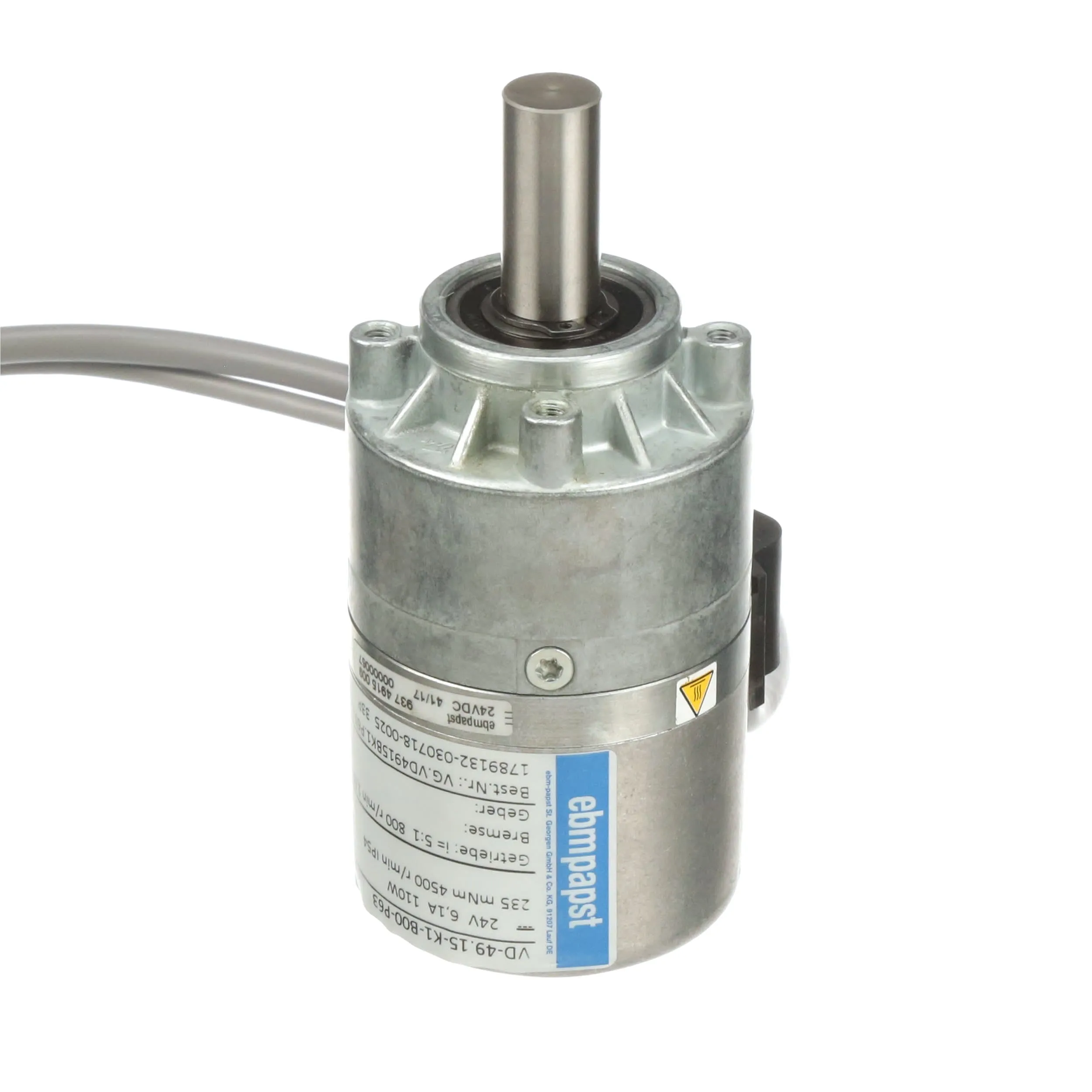

| Type | Brushless DC Gearmotor (BLDC) |
| UPC Code | 111111111111 |
| Voltage Rating | 24 V |
Overview
ebm-papst VD/VDC Series — Brushless External Rotor Motors & Gearmotors:
The brushless VDC-49.15-K4 external rotor motor from ebm-papst features outstanding power density and compact dimensions. It has an integrated speed, torque, and position control function. The drive is equipped with completely integrated K4 operation and control electronics, and in combination with the PerformaxPlus 63 planetary gear, can be used in operating tables and pump drives.
The brushless, electronically commutated internal rotor motors feature extremely smooth operation and a long service life. The K1 electronics module is dimensioned for operation with external control electronics that record the rotor position with Hall sensors, for example. In combination with the Performax 42 planetary gear, the ECI-42.40-K1 drive is installed in knee braces that are used in rehabilitation. The motors induce longitudinal displacement.
Type VD49 Features:
Series Features:
Support with the accreditation of products in different economic areas and markets:
— As an experienced and competent partner we would be happy to support you
— Possible approvals include CE, CCC, UL, CSA, EAC
— Additional approvals on request
