| Product Attribute | Attribute Value |
|---|---|
| Measurement Range | 1.49 in-9.84 ft (3.8 cm-3 m) |
| Output | 4-20 mA |
| Series | |
| Special Features | Intrisically Safe version of UG03 : Allied Stock#: 71000731, Mfr. Part#: US03-0001-01 |
Overview

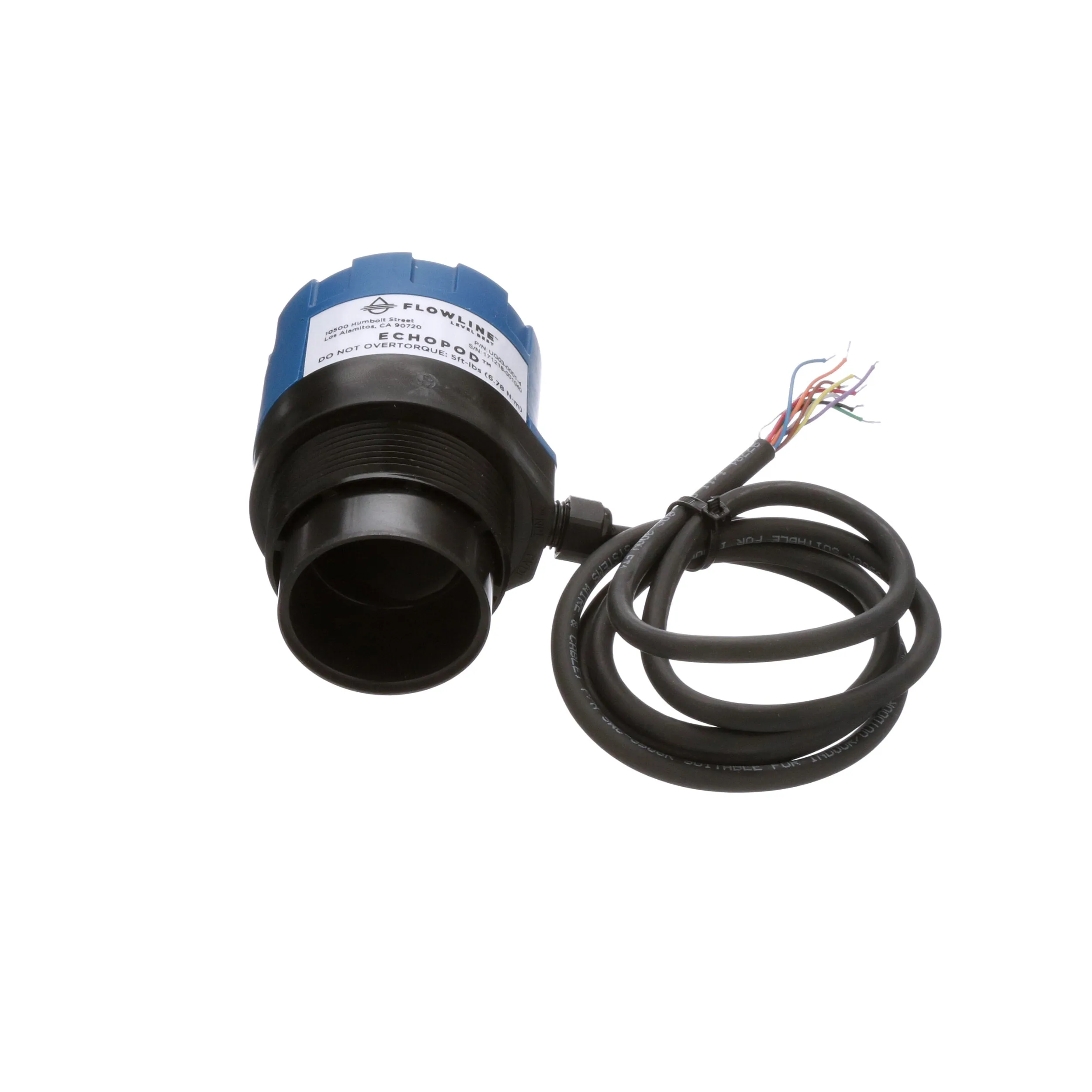

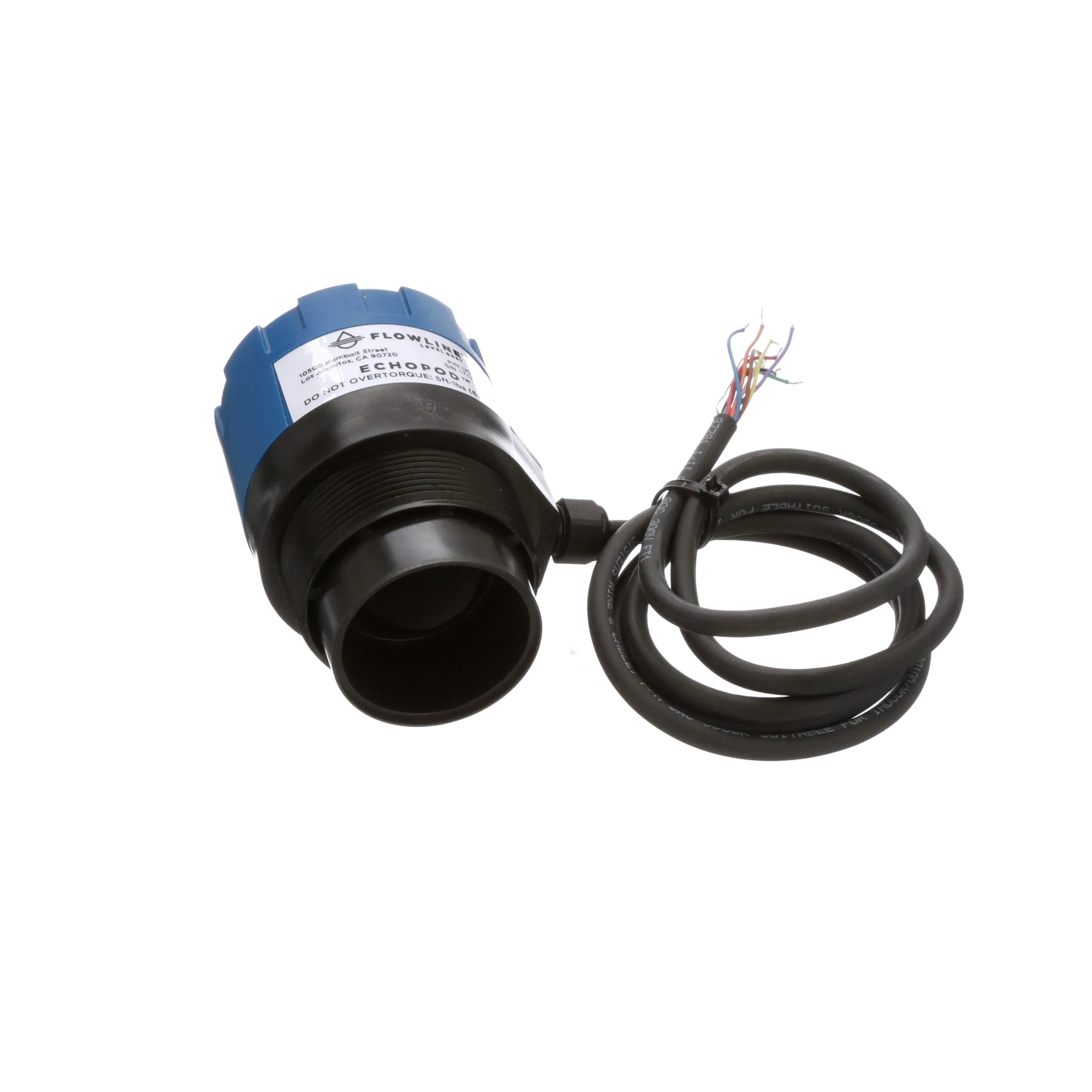

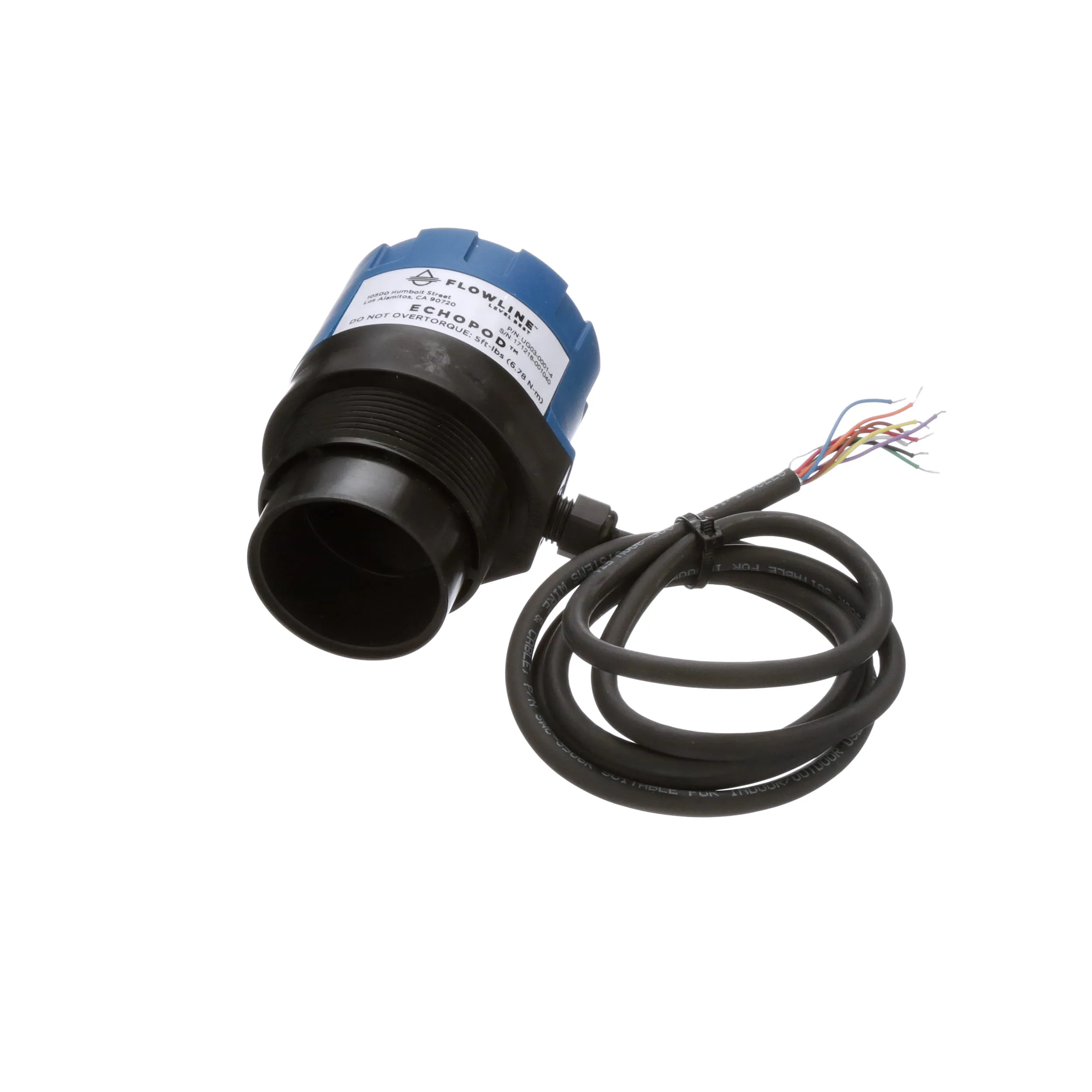

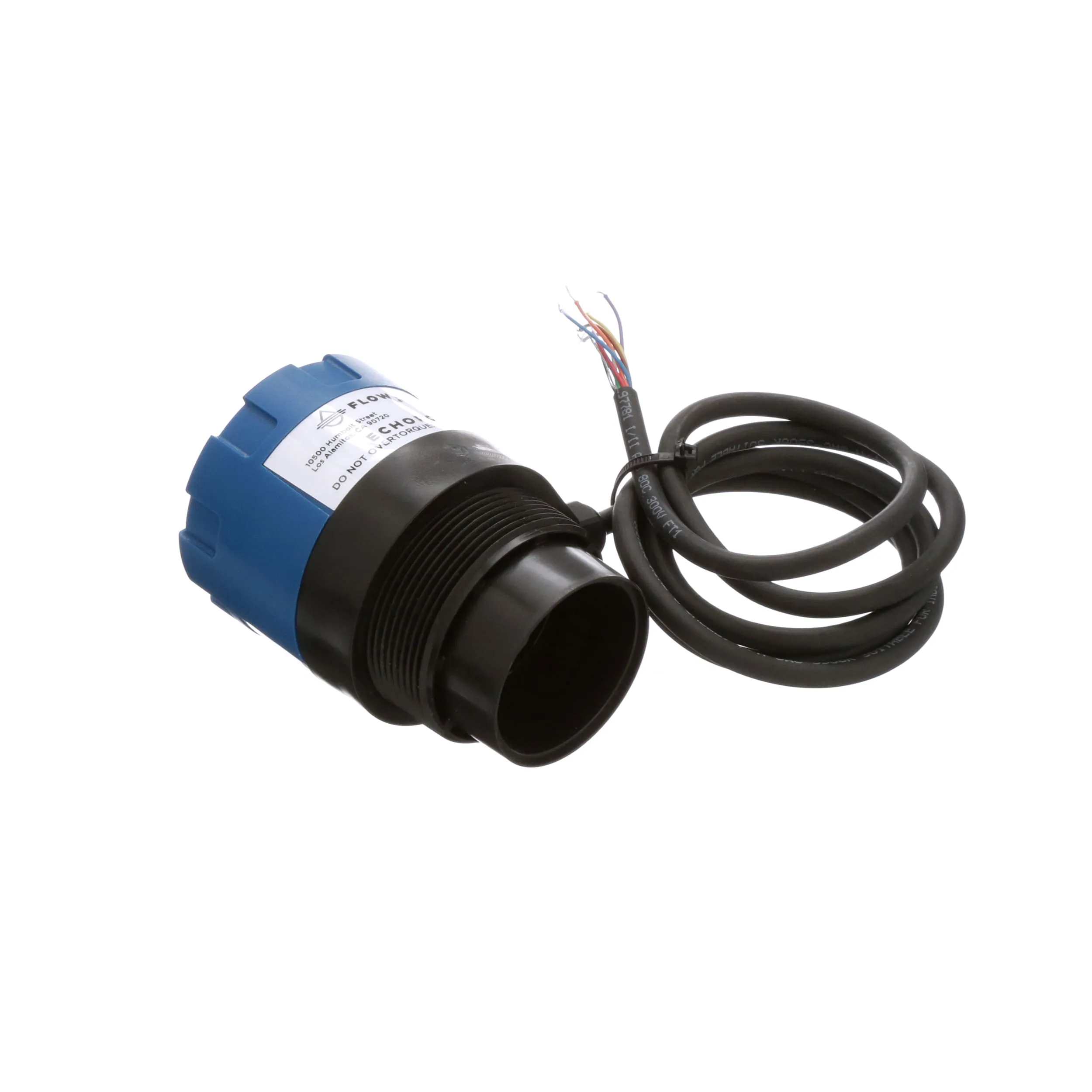

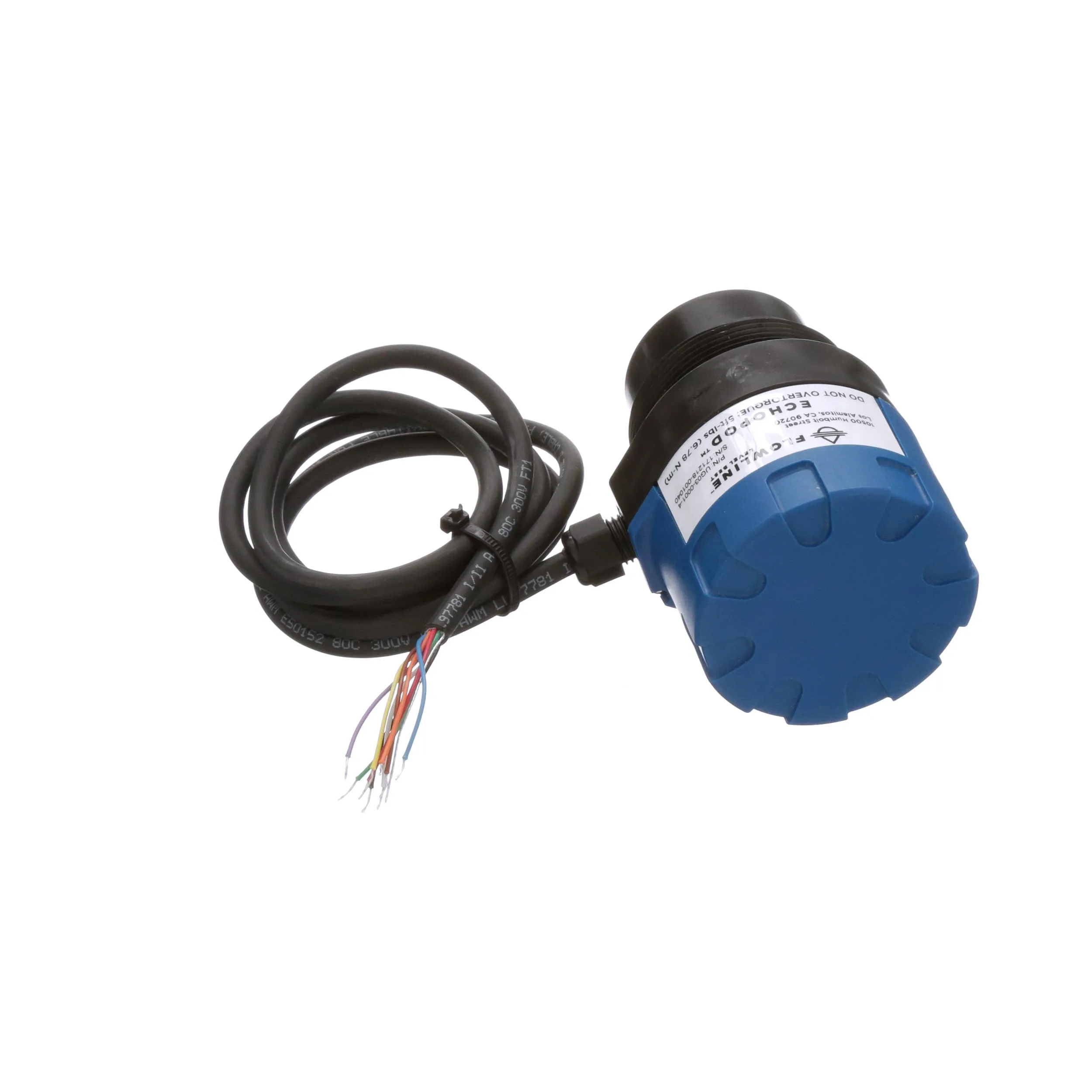

EchoPod® UG01 & UG03 Reflective Ultrasonic Multi-Function Liquid Level Transmitter:
The general purpose reflective ultrasonic multi-function level transmitter provides continuous level measurement up to 9.8’ (3m) with a 4-20 mA analog signal output and four relays, and is configured via our WebCal software. The non-contact liquid level sensor features our proprietary Reflective Technology™ that delivers reliable level measurement in condensing environments. Each relay can be configured for alarm, automatic fill or empty functions. Select this sensor for small tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps.
Condensation is the most common variable in liquid level applications. Condensation attenuates the acoustic signal of ultrasonic sensors with horizontal transducers, weakening their signal strength and signal to noise ratio by up to 50%, and substantially reducing their measurement reliability. At the core of Reflective Technology™ is a simple fact. Unlike flat horizontal surfaces, significant water droplets cannot adhere to smooth vertical surfaces. By orienting the transducer vertically, condensation runs off the transducer and does not affect sensor performance. The unimpeded transmit and receive signals are redirected to and from the liquid off a 45° reflector, delivering reliable level measurement. Thanks gravity.
Intrisically Safe version of UG03 : Allied Stock#: 71000731, Mfr. Part#: US03-0001-01
Features:
