| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1A3006-34 |
| Family Name | Mini-Change Family |
| Gender | Plug |
| Number of Circuits | 3 |
| Orientation | Straight |
| Primary Type | M Series Automation |
| Series | |
| Type | M12 |
Overview

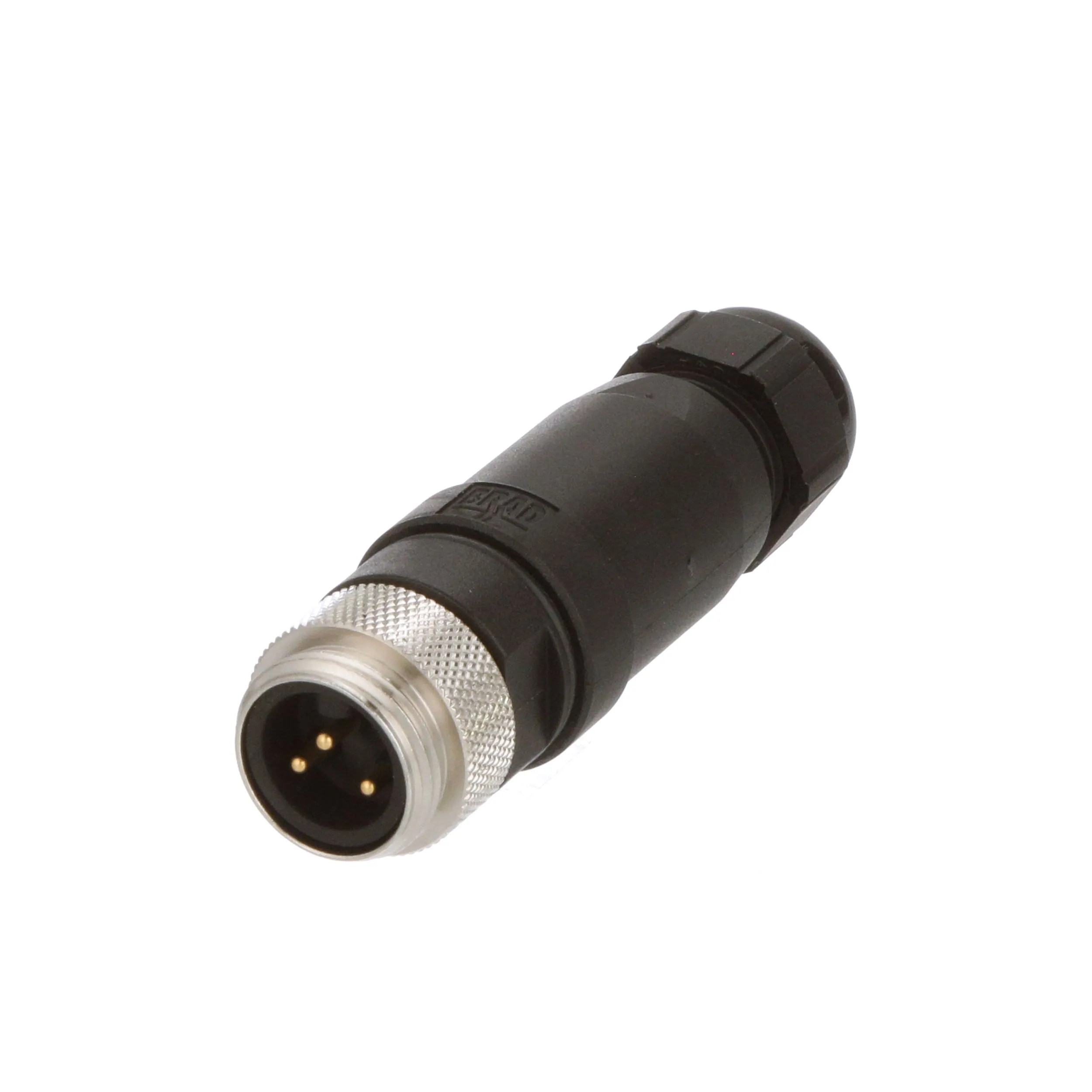

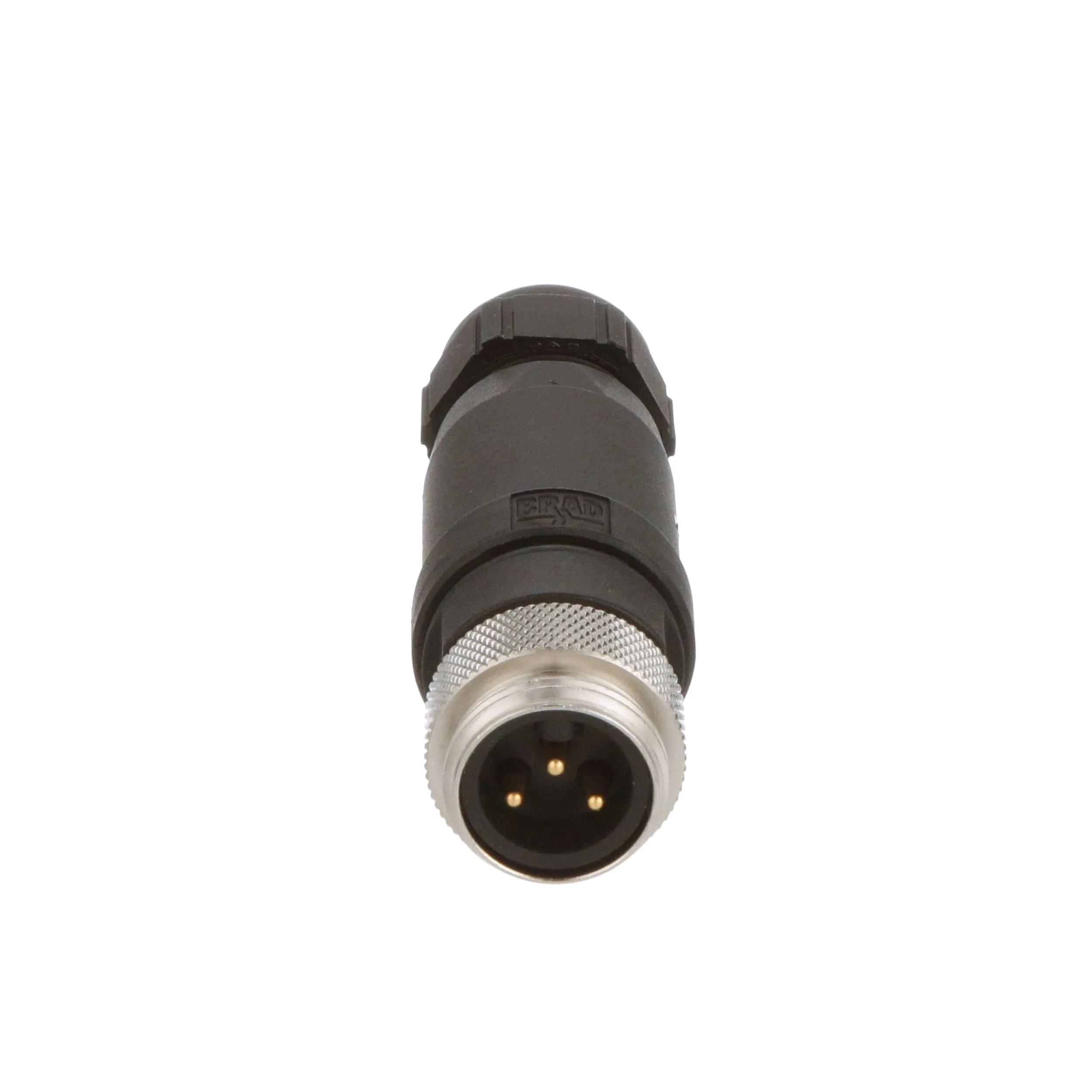

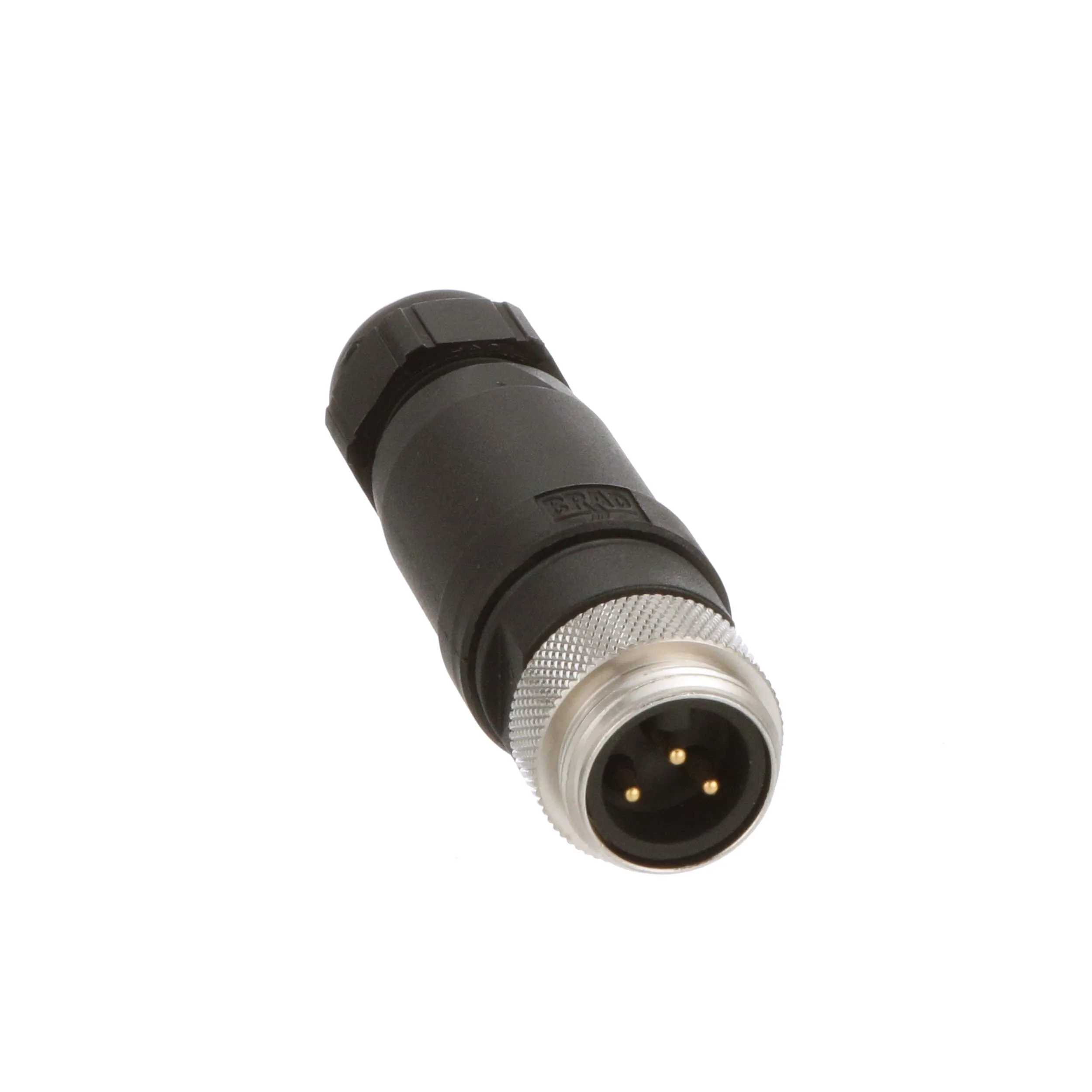

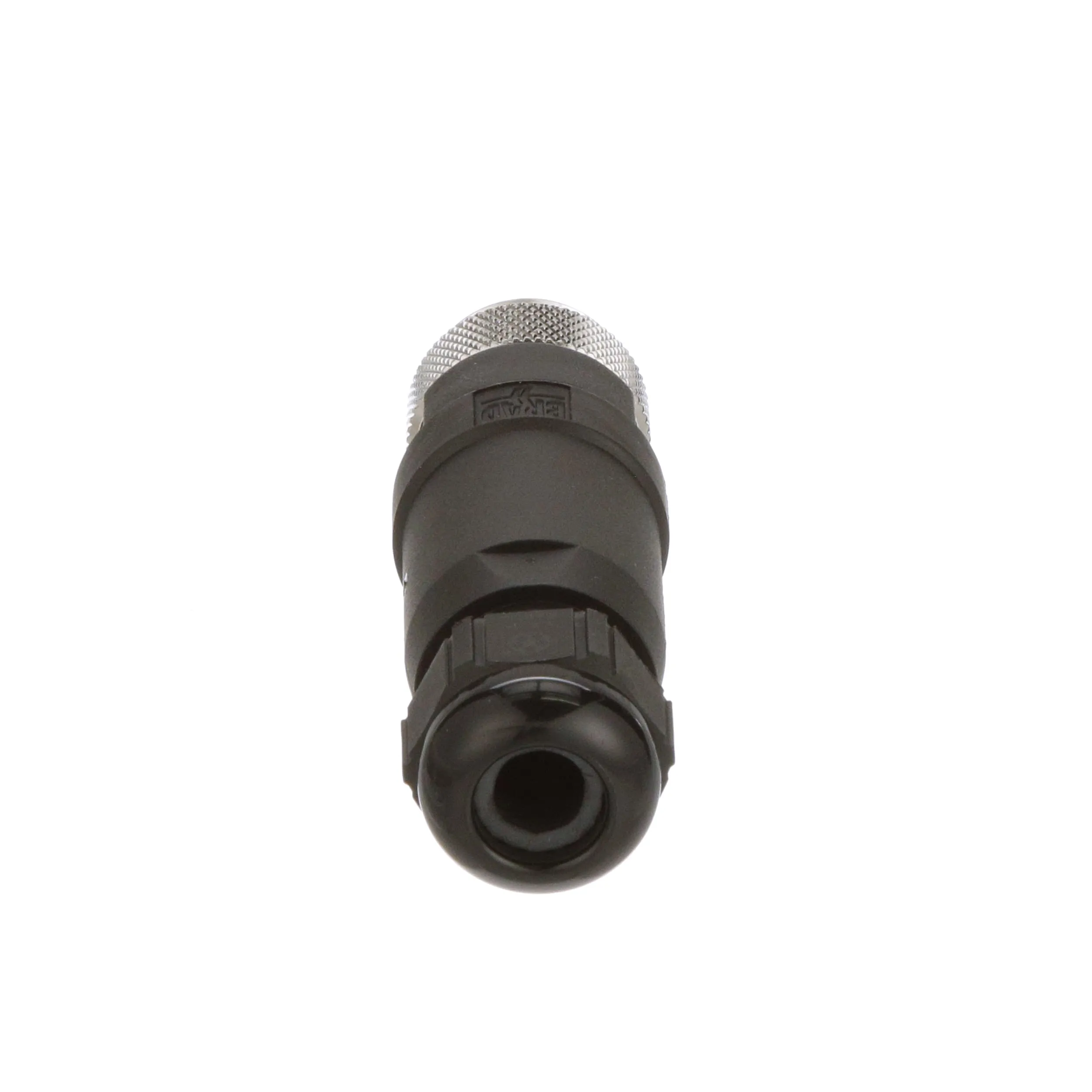

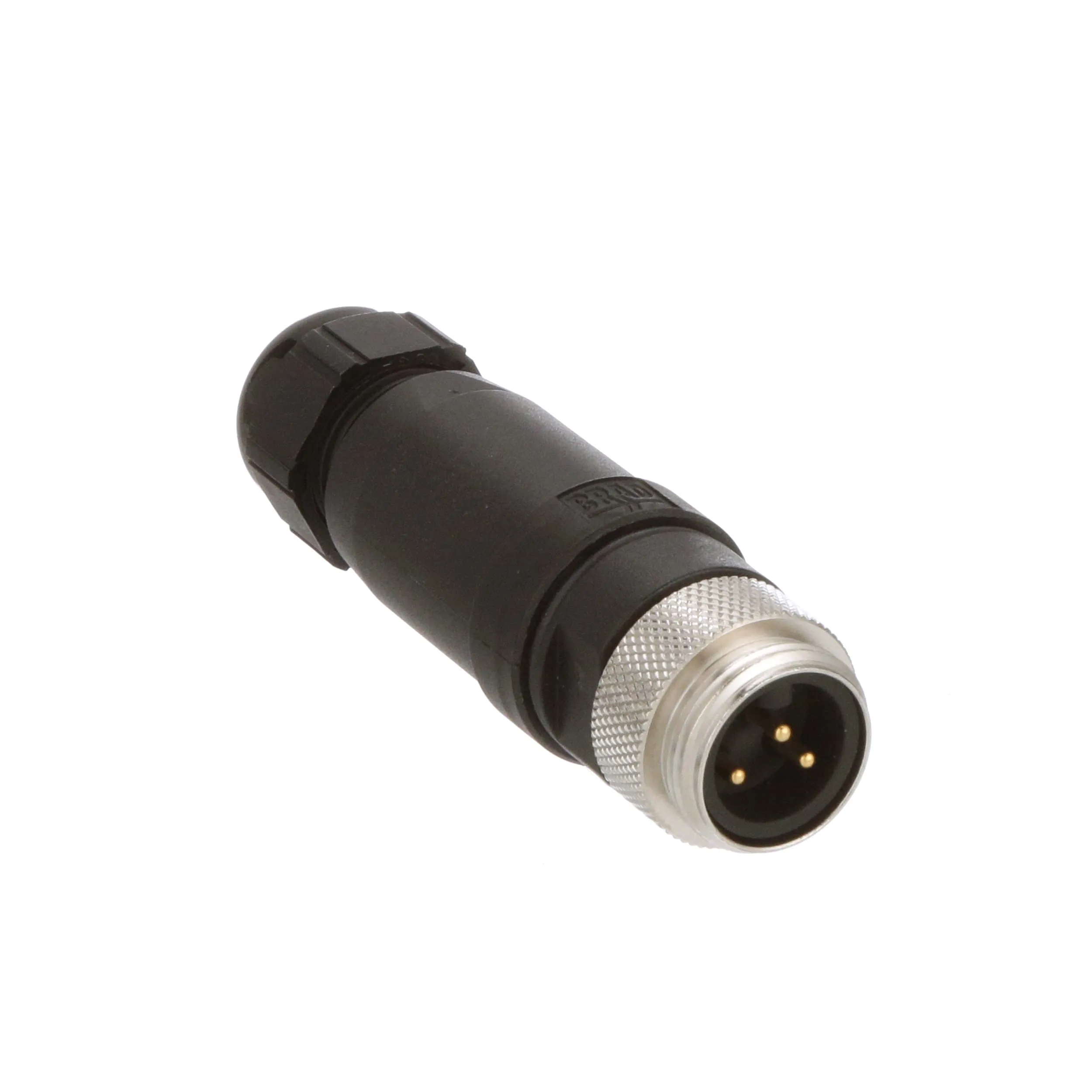

Molex | Brad Mini-Change Family – 130017 Series of FIT Power Connectors:
Brad Mini-Change Connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.
Mini-Change connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low-resistance connection, the patented Quad Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.
Features:
Applications:
