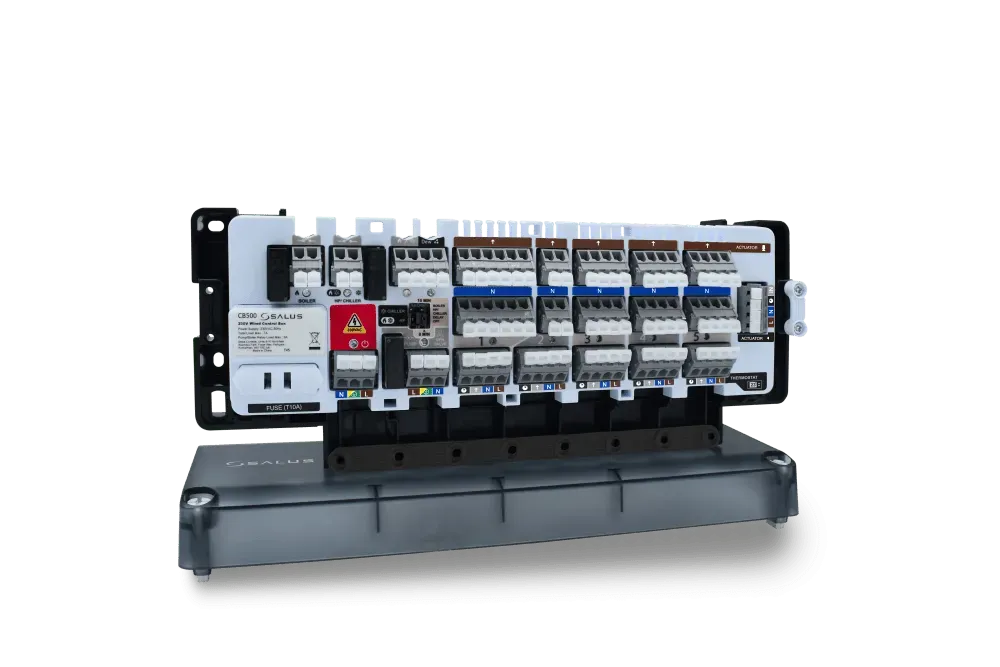

The Salus Wiring Centre - 5 Zone CB500 is a sophisticated control solution for managing your underfloor heating and cooling systems. This advanced control box serves as the central hub of your system, offering precise control over multiple zones within your property. With its robust features and flexible design, it ensures optimal performance and comfort across different areas of your home or commercial space.

The CB500 control box is equipped with a built-in module that seamlessly manages both heating and cooling sources, allowing you to create the perfect climate for each zone. Designed to control up to 5 independent zones, the system can be expanded to accommodate up to 15 zones by incorporating additional CB500X extension modules. This scalability makes the CB500 an ideal choice for both small and large installations.

Key Features:

• Versatile Control: Operates up to 5 zones, with the capability to expand to 15 zones with additional CB500X extension modules.
• Flexible Operation: Features voltage-free outputs to control various heat and cooling sources, including boilers, heat pumps, and chillers. Easily switch between heating and cooling modes for year-round comfort.
• Power Supply Options: Provides 230V voltage outputs specifically designed for pumps and actuators, ensuring reliable and efficient operation.
• Direct Thermostat Power: Thermostats requiring a 230V power supply can be powered directly from the control box, streamlining the setup and reducing the need for additional power sources.
• Convenient Wiring: Spring clamps allow for quick and secure wiring connections, simplifying installation and maintenance tasks.
• Actuator Compatibility: Designed to work with NC (normally-closed) type actuators, ensuring compatibility with a wide range of system components.
• Mounting Options: Can be mounted on a flat surface or DIN rail, providing flexibility to suit different installation environments.

The Salus CB500 Wiring Centre is engineered to enhance the efficiency and control of your underfloor heating and cooling systems. Its advanced features, ease of installation, and scalability make it a top choice for creating a comfortable and well-regulated environment in any space.
